ADV-AXIS-5401-ES

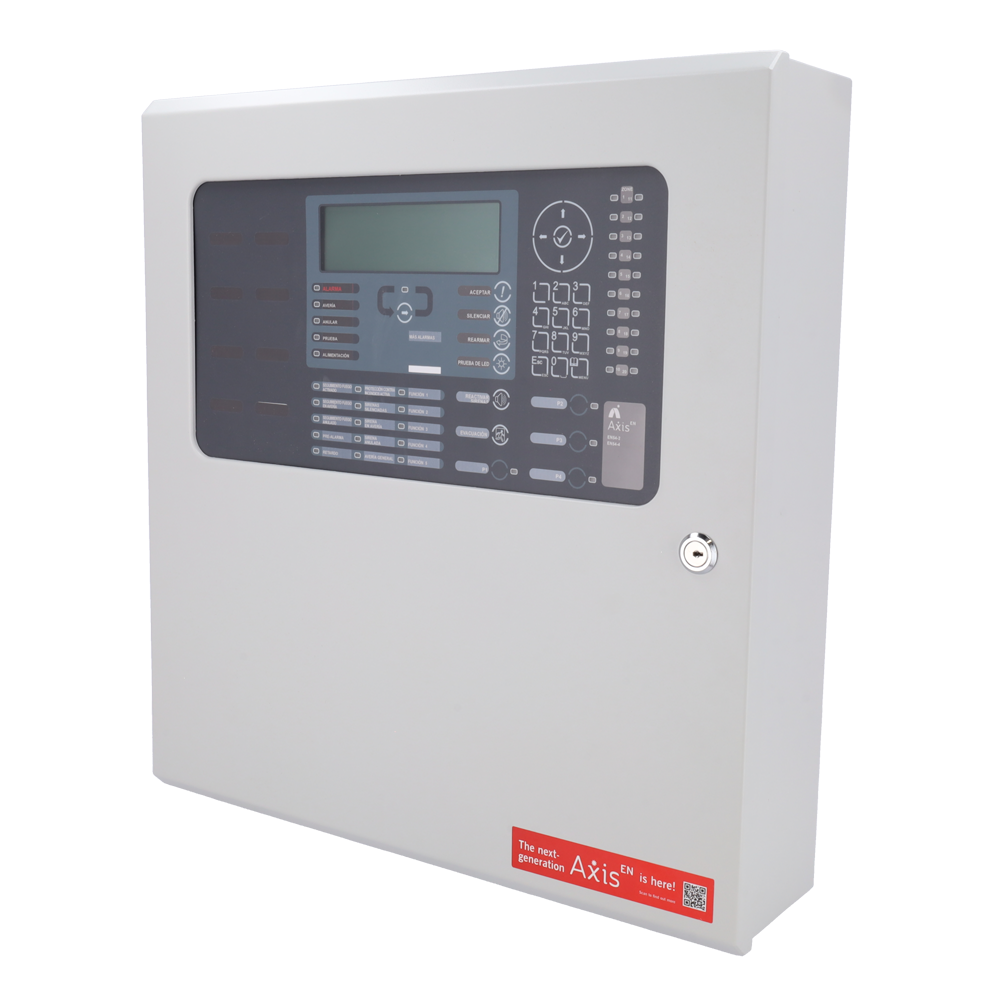

Addressable analog fire protection control panel with 1 loops, physically expandable to 4 loops using expansion cards. A high-performance tie from Advanced's premium Axis EN line. It offers the highest logical processing capacity and scalability in the Axis series in a single chassis.
Advanced
Central 1 expandable to 4
1 AXIS proprietary protocol loop
Up to 240 devices per loop
Auto-addressing of devices
Ad-Net peer-to-peer network capable of managing up to 2000 zones
Programmable function buttons
4 siren outputs
USB communication ports and RS232
20 LED for programmable zones
Graphical LCD user interface and support for up to 200 default fire zones, enabling full compliance with the EN54 standard.
Compatible with IP module (installed in network, 1 only module for the whole system)
Removable terminals for hot extraction
Quick-extraction main plate. Easy removal of PCB from the housing
Rack mountable
Customizable LCD logo
Multi-language
Certified EN 54-2:1997, EN 54-4:1997 and EN 54-13:2005 Certificate in EN54 Parts 2 and 4 by FM Approvals
Especificaciones
| Categoria | Panels |
| Marca | ADVANCED |
| Stock | nostock |
| Dispositivos | Central de incendios |
