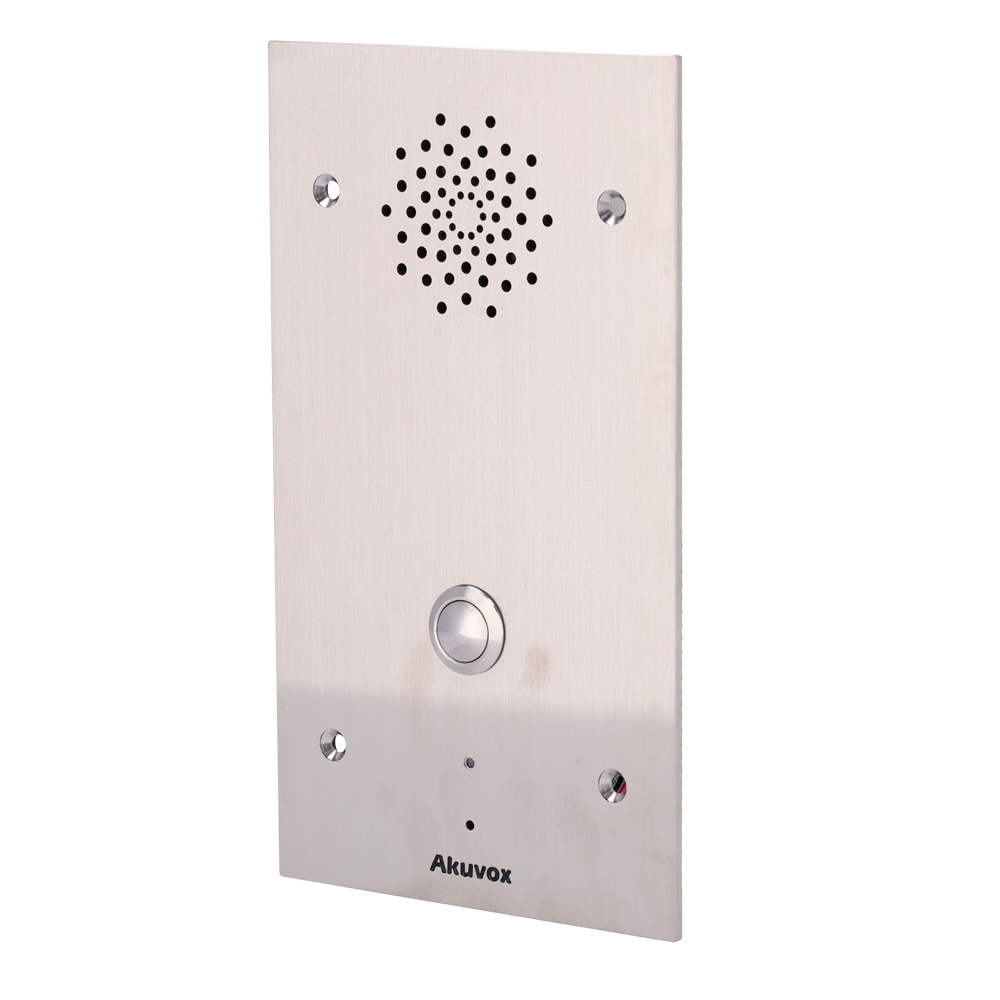

AK-E21A
The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 2 relay outputs to manage up to 2 doors simultaneously.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its physical keypad makes it easy to call the users.
Its exterior grade IP65 allows it to be installed outdoors. In addition, its IK10 anti-vandalism rating allows it to withstand the most challenging environments.
Advanced configurable functions: standard SIP protocol 2.0 (allows the equipment to be integrated with third-party PBXs).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
Emergency intercom
Built-in speaker and microphone
Two-way audio with Crystal Clear technology
TCP/IP Connection
PoE IEEE802.3af
Remote door opening
2 door relay outputs
Port RS485
Call status LED
Suitable for exterior IP65
Anticorrosive steel surface SUS316 vandal resistant IK10
Surface mounting or flush mounting with additional bracket
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Firmware upgrades via cloud with installer control
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation
Especificaciones
| Categoria | Panels |
| Marca | AKUVOX |
| Stock | High |
| Alimentacion | Standard PoE and DC12V |
| Comunicacion | PoE |
| Tecnologia rfid | Does not have |
| Proteccion | IP65, IK10 |
| Tecnologia | Emergency IP |
| Pantalla | Does not have |
| Modos de acceso | Does not have |
| Camara | Does not have |
