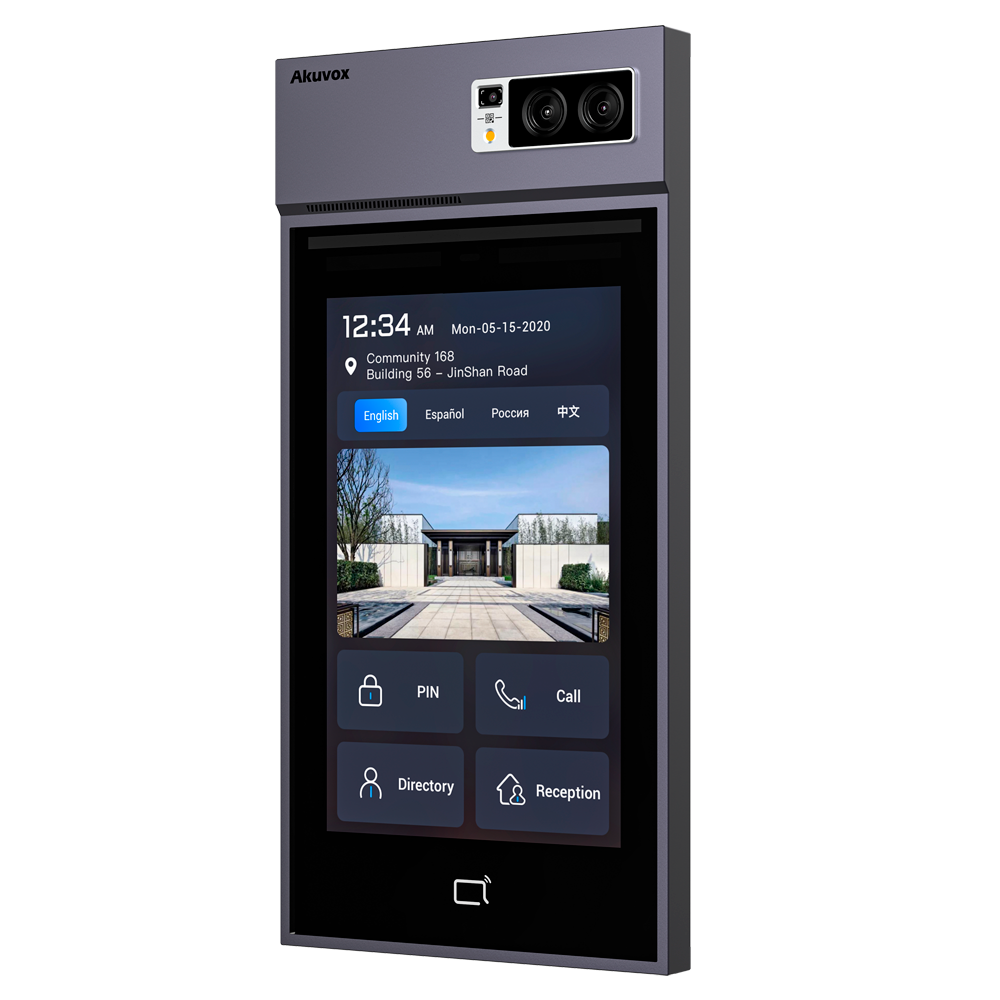

AK-S539
The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 3 relay outputs to manage up to 3 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM 125 kHz and MF 13.56 MHz technology, NFC, Bluetooth, QR code reading, as well as keypad for numeric codes and biometrics with facial recognition. Temporary PIN and QR codes are also available to provide limited access from your SmartPlus mobile application.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its 10" touch screen allows you to display the directory of users to call, as well as to enter PIN codes for access.
Its exterior grade IP66 allows it to be installed outdoors. In addition, its IK08 anti-vandalism rating allows it to withstand the most challenging environments.
Advanced configurable functions: wiegand connection (allows adding third-party access readers for user identification), two-way video (allows making a video call showing users who answer the call), ONVIF protocol (allows integrating the camera in CCTV video recorders) and standard SIP protocol 2.0 (allows integrating the equipment in third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IP video intercom with 5 Mpx camera for appartements
Main camera with starlight and HDR
Secondary camera of 2 Mpx for anti-spoofing technology
Integrated dual speaker and dual microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE+ IEEE802.3at
Integrated EM/MF and NFC card reader
Opening by facial recognition, BLE and temporary PIN or QR keys
Remote door opening
3 door relay outputs
Advanced access functions: anti-passback (through Cloud)
Output of 12 V/1 A (when powered by PoE+)
Wiegand, RS485 and magnetic loop ports
10" configurable full color Android IPS touch screen
Customizable wallpaper and screensaver
Configurable LED illumination on card reader
Suitable for exterior IP66
Vandal-resistant aluminum alloy surface IK08
Surface mounting or flush mounting with additional bracket
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices via SmartPlus APP (included with monitor or with AK-COUPON-FOREVER subscription)
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Call and user directory displayed on screen
Firmware upgrades via cloud with installer control
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation
Especificaciones
| Categoria | Panels |
| Marca | AKUVOX |
| Stock | High |
| Alimentacion | Standard PoE and DC12V |
| Comunicacion | PoE |
| Tecnologia rfid | EM (125kHz) and MF (13.56MHz) |
| Proteccion | IP66, IK08 |
| Tecnologia | IP Apartments |
| Otros | Output 12V, Anti-passback |
| Pantalla | 10IPS Color Touch |
| Modos de acceso | Facial, Card, NFC, BLE, QR, and PIN |
| Camara | 5 Mpx |
| Categoria | Placas |
| Marca | AKUVOX |
| Stock | High |
| Otros | Salida 12V, Anti-passback |
| Alimentacion | PoE Standard y DC12V |
| Comunicacion | PoE |
| Tecnologia rfid | EM (125kHz) y MF (13.56MHz) |
| Proteccion | IP66, IK08 |
| Tecnologia | IP Apartamentos |
| Pantalla | 10IPS Color Táctil |
| Modos de acceso | Facial, Tarjeta, NFC, BLE, QR y PIN |
| Camara | 5 Mpx |
