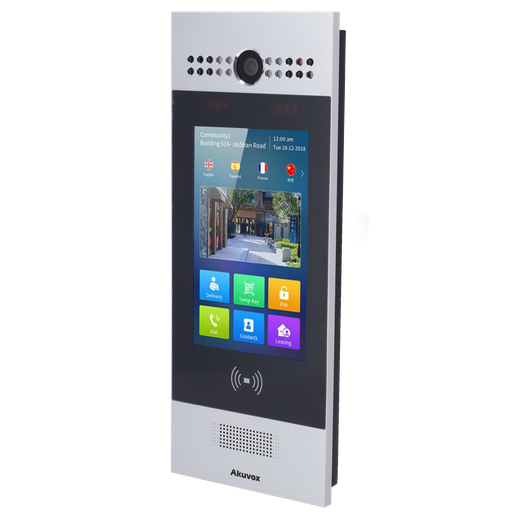

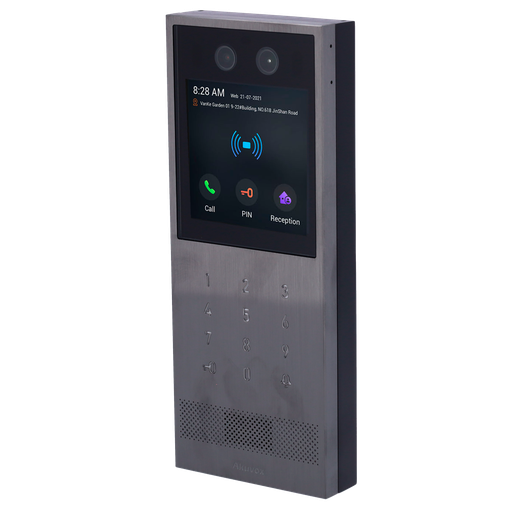

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 3 relay outputs to manage up to 3 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM 125 kHz and MF 13.56 MHz technology, QR code reading, as well as keypad for numeric codes and biometrics with facial recognition. Temporary PIN and QR codes are also available to provide limited access from your SmartPlus mobile application.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its 7" touch screen allows you to display the directory of users to call, as well as to enter PIN codes for access.
Its exterior grade IP65 allows it to be installed outdoors. In addition, its IK06 anti-vandalism rating allows it to withstand the most challenging environments.
Advanced configurable functions: wiegand connection (allows adding third-party access readers for user identification), two-way video (allows making a video call showing users who answer the call), ONVIF protocol (allows integrating the camera in CCTV video recorders) and standard SIP protocol 2.0 (allows integrating the equipment in third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IP video intercom with 3 Mpx camera for appartements
Built-in speaker and microphone
Two-way audio and video with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE IEEE802.3af
Integrated EM/MF card reader
Opening by facial recognition and temporary PIN or QR keys
Remote door opening
3 door relay outputs
Advanced access functions: anti-passback (through Cloud)
12 V/500 mA output (when powered by PoE+)
Wiegand ports and RS485
7" configurable full color Android IPS touch screen
Customizable wallpaper and screensaver
Configurable LED illumination on card reader
Suitable for exterior IP65
Vandal-resistant aluminum alloy surface IK06
Surface mounting or flush mounting with additional bracket
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices via SmartPlus APP (included with monitor or with AK-COUPON-FOREVER subscription)
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Call and user directory displayed on screen
Firmware upgrades via cloud with installer control
ONVIF protocol for integration with video surveillance recorders
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

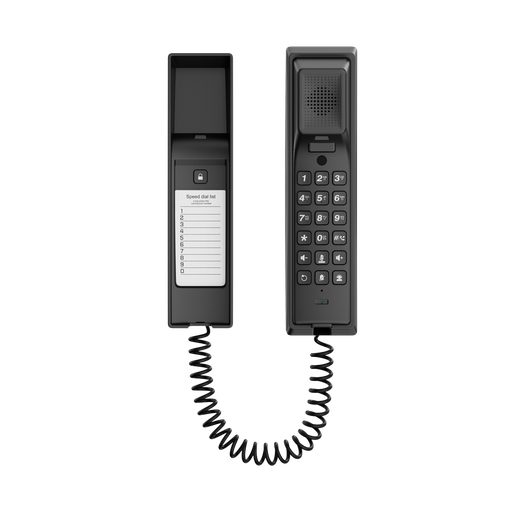

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Advanced configurable functions: standard SIP protocol 2.0 (allows the equipment to be integrated with third-party PBXs).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
Video intercom
Status LED and function keys
Built-in microphone and speaker
Two-way audio with Crystal Clear technology
Automatic voice detection
TCP/IP
1 PoE port IEEE802.3af
Surface mounting
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 users included for each dwelling Single Family (free) and Community (under subscription)
Firmware upgrades via cloud with installer control
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

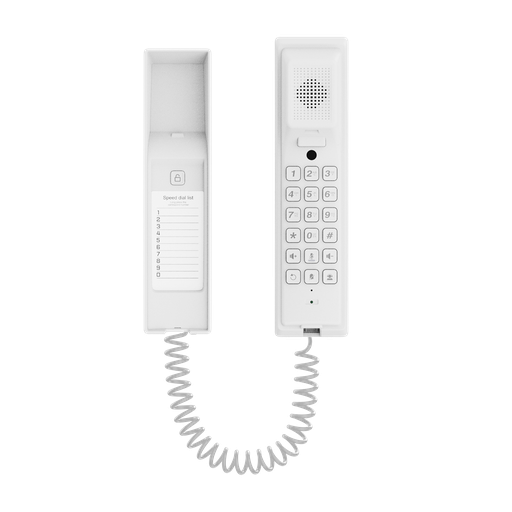

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Advanced configurable functions: standard SIP protocol 2.0 (allows the equipment to be integrated with third-party PBXs).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
Video intercom
Status LED and function keys
Built-in microphone and speaker
Two-way audio with Crystal Clear technology
Automatic voice detection
TCP/IP
1 PoE port IEEE802.3af
Surface mounting
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 users included for each dwelling Single Family (free) and Community (under subscription)
Firmware upgrades via cloud with installer control
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation
White colour

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 7" touch screen for easy operation by the user.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
By having 1 relay output, it is possible to act on different elements, such as doors or bells to be activated during calls.
Advanced configurable functions: oNVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs), standard SIP protocol 2.0 (allows integrating the equipment with third-party PBXs) and doorbell input (allows directly connecting the doorbell push button to the monitor to act as one).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
Linux IPS display for 7" video door entry system
Easy UI user interface
Built-in microphone and speaker
Two-way audio with Crystal Clear technology
1 buzzer input and 8 alarm input
1 relay output
Image capture and recording
Multiple screen extensions
TCP/IP
1 PoE port IEEE802.3af
Surface mounting with additional accessory
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per house
Call and user directory
Firmware upgrades via cloud with installer control
Camera viewing via RTSP and ONVIF
Connection between boards and monitors via cloud in different networks

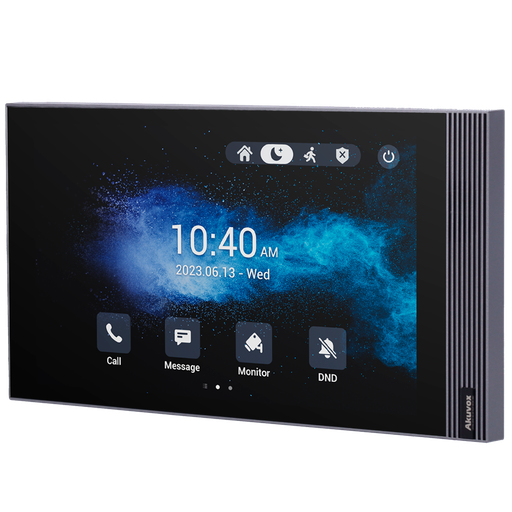

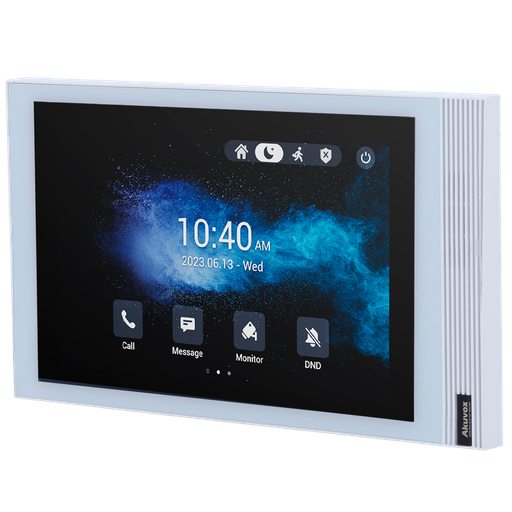

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 7" touch screen for easy user operation, with IPS technology that offers higher image quality.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
By having 1 relay output, it is possible to act on different elements, such as doors or bells to be activated during calls.
Advanced configurable functions: oNVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs), standard SIP protocol 2.0 (allows integrating the equipment with third-party PBXs) and doorbell input (allows directly connecting the doorbell push button to the monitor to act as one).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
Linux IPS display for 7" video door entry system
Easy UI user interface
Built-in microphone and speaker
Two-way audio with Crystal Clear technology
1 buzzer input and 8 alarm input
1 relay output
Image capture and recording
Multiple screen extensions
TCP/IP and WiFi
1 PoE port IEEE802.3af
Surface mounting without the need for additional accessories
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per house
Call and user directory
Firmware upgrades via cloud with installer control
Camera viewing via RTSP and ONVIF
Connection between boards and monitors via cloud in different networks

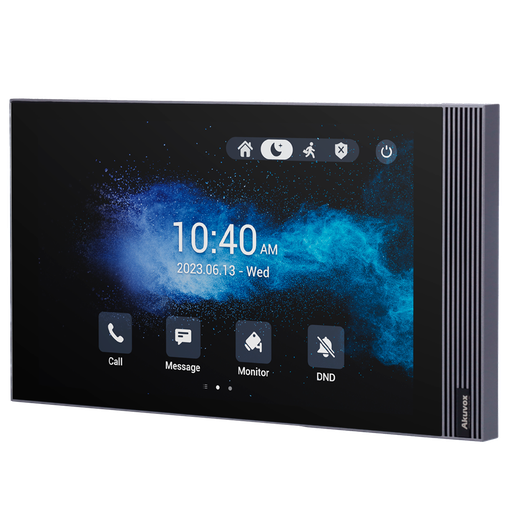

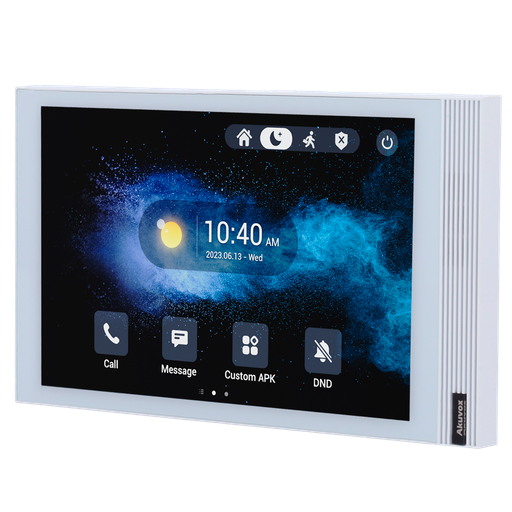

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 8" touch screen for easy user operation, with IPS technology that offers higher image quality. In addition, it has an Android operating system, allowing the installation of third-party applications with Google Services to control the intrusion system, SmartHome or CCTV of the facility, among others.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
By having 1 relay output, it is possible to act on different elements, such as doors or bells to be activated during calls.
Advanced configurable functions: oNVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs), standard SIP protocol 2.0 (allows integrating the equipment with third-party PBXs) and doorbell input (allows directly connecting the doorbell push button to the monitor to act as one).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IPS Android 12.0 display for 8" video door phone
Easy UI user interface
Built-in microphone and speaker
Two-way audio with Crystal Clear technology with automatic gain control
Automatic voice detection
1 buzzer input and 8 alarm input
1 relay output
Image capture and recording
Multiple screen extensions
TCP/IP
1 PoE port IEEE802.3af
Surface mounting with additional accessory
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per house
Call and user directory
Firmware upgrades via cloud with installer control
Camera viewing via RTSP and ONVIF
Connection between boards and monitors via cloud in different networks
Installation of third-party applications with installable Google Services
Remote configuration access for installation

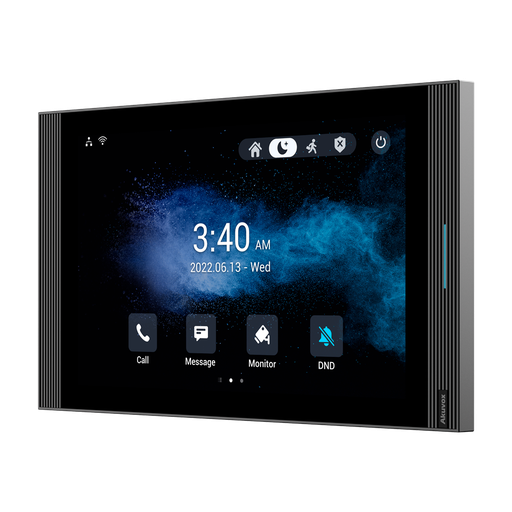

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 8" touch screen for easy user operation, with IPS technology that offers higher image quality. In addition, it has an Android operating system, allowing the installation of third-party applications with Google Services to control the intrusion system, SmartHome or CCTV of the facility, among others.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
By having 1 relay output, it is possible to act on different elements, such as doors or bells to be activated during calls.
Advanced configurable functions: oNVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs), standard SIP protocol 2.0 (allows integrating the equipment with third-party PBXs) and doorbell input (allows directly connecting the doorbell push button to the monitor to act as one).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IPS Android 12.0 display for 8" video door phone
Easy UI user interface
Built-in microphone and speaker
Two-way audio with Crystal Clear technology with automatic gain control
Automatic voice detection
1 buzzer input and 8 alarm input
1 relay output
Image capture and recording
Multiple screen extensions
TCP/IP
1 PoE port IEEE802.3af
Surface mounting with additional accessory
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per house
Call and user directory
Firmware upgrades via cloud with installer control
Camera viewing via RTSP and ONVIF
Connection between boards and monitors via cloud in different networks
Installation of third-party applications with installable Google Services
Remote configuration access for installation
White colour

Akuvox
Pantalla IPS Android 12.0 para videoportero de 8"
Interfaz de usuario Easy UI
Micrófono y altavoz integrados
Audio bidireccional con tecnología Crystal Clear con control de gaFalsecia automático
Detección de voz automática
1 entrada de timbre y 8 de alarma
1 salida de relé
Grabación y captura de imágenes
Extensión múltiple de pantallas
TCP/IP, WiFi y Bluetooth
1 puerto PoE IEEE802.3af
SIP estándar de fácil integración
Montaje en superficie sin necesidad de accesorio adicional
Completa configuración a través de navegador Web
Notificaciones push y llamadas entre dispositivos a través de App SmartPlus
4 usuarios gratuitos incluidos por cada vivienda
Directorio de llamadas y usuarios
Actualizaciones de firmware a través de nube con control del instalador
Visualización de cámaras por RTSP y ONVIF
Conexión entre placas y monitores a través de nube en diferentes redes
Instalación de aplicaciones de terceros con Google Services instalables
Acceso remoto de configuración para instalación
Color blanco

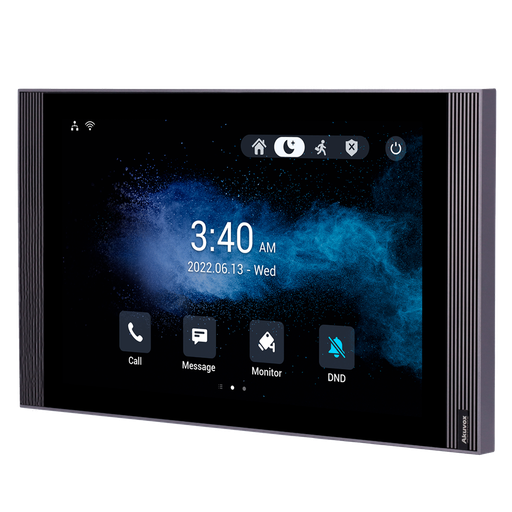

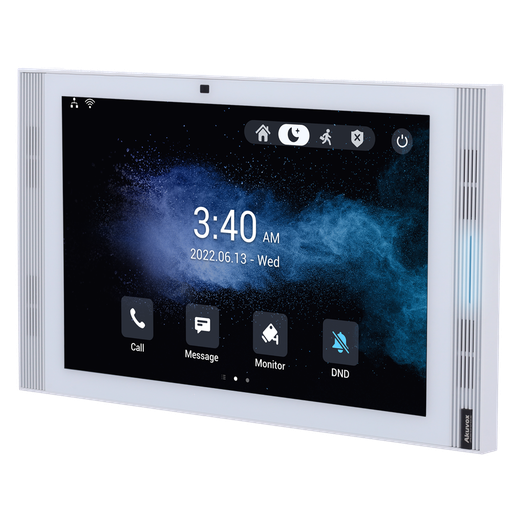

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 10" touch screen for easy user operation, with IPS technology that offers higher image quality.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
By having 1 relay output, it is possible to act on different elements, such as doors or bells to be activated during calls.
Advanced configurable functions: oNVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs), standard SIP protocol 2.0 (allows integrating the equipment with third-party PBXs) and doorbell input (allows directly connecting the doorbell push button to the monitor to act as one).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
Linux IPS display for 10" video door entry system
Easy UI user interface
Integrated dual microphone and speaker
Two-way audio with Crystal Clear technology
1 buzzer input and 8 alarm input
1 relay output
Image capture and recording
Multiple screen extensions
TCP/IP
1 PoE port IEEE802.3af
Surface mounting with additional accessory
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per house
Call and user directory
Firmware upgrades via cloud with installer control
Camera viewing via RTSP and ONVIF
Connection between boards and monitors via cloud in different networks

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 10" touch screen for easy user operation, with IPS technology that offers higher image quality. In addition, it has an Android operating system, allowing the installation of third-party applications with Google Services to control the intrusion system, SmartHome or CCTV of the facility, among others.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
By having 1 relay output, it is possible to act on different elements, such as doors or bells to be activated during calls.
Advanced configurable functions: oNVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs), standard SIP protocol 2.0 (allows integrating the equipment with third-party PBXs) and doorbell input (allows directly connecting the doorbell push button to the monitor to act as one).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IPS Android 12.0 display for 10" video door phone
Easy UI user interface and status LEDs
Dual microphone and four built-in speakers
Two-way audio with Crystal Clear technology with automatic gain control
Automatic voice detection
1 buzzer input and 8 alarm input
1 relay output
Image capture and recording
Multiple screen extensions
TCP/IP
1 PoE port IEEE802.3af
Surface mounting with additional accessory
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per house
Call and user directory
Firmware upgrades via cloud with installer control
Camera viewing via RTSP and ONVIF
Connection between boards and monitors via cloud in different networks
Installation of third-party applications with installable Google Services
Remote configuration access for installation

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 10" touch screen for easy user operation, with IPS technology that offers higher image quality. In addition, it has an Android operating system, allowing the installation of third-party applications with Google Services to control the intrusion system, SmartHome or CCTV of the facility, among others.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
By having 1 relay output, it is possible to act on different elements, such as doors or bells to be activated during calls.
Advanced configurable functions: oNVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs), standard SIP protocol 2.0 (allows integrating the equipment with third-party PBXs) and doorbell input (allows directly connecting the doorbell push button to the monitor to act as one).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IPS Android 12.0 display for 10" video door phone
Easy UI user interface and status LEDs
Dual microphone and four built-in speakers
Two-way audio with Crystal Clear technology with automatic gain control
Automatic voice detection
1 buzzer input and 8 alarm input
1 relay output
Image capture and recording
Multiple screen extensions
TCP/IP
1 PoE port IEEE802.3af
Surface mounting with additional accessory
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per house
Call and user directory
Firmware upgrades via cloud with installer control
Camera viewing via RTSP and ONVIF
Connection between boards and monitors via cloud in different networks
Installation of third-party applications with installable Google Services
Remote configuration access for installation
White colour

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 10" touch screen for easy user operation, with IPS technology that offers higher image quality. In addition, it has an Android operating system, allowing the installation of third-party applications with Google Services to control the intrusion system, SmartHome or CCTV of the facility, among others.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
By having 1 relay output you can act on different elements, such as doors or bells to be triggered during calls.
Advanced configurable functions: oNVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs), standard SIP protocol 2.0 (allows integrating the equipment with third-party PBX telephone exchanges), Bluetooth connection (allows pairing headphones or speakers for use during calls) and doorbell input (allows directly connecting the doorbell push button to the monitor to act as one).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IPS Android 12.0 display for 10" video door phone
Easy UI user interface and status LEDs
Dual microphone and four built-in speakers
Two-way audio with Crystal Clear technology with automatic gain control
Automatic voice detection
1 buzzer input and 8 alarm input
1 relay output
Image capture and recording
Multiple screen extensions
TCP/IP, WiFi and Bluetooth
1 PoE port IEEE802.3af
Surface mounting with additional accessory
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per house
Call and user directory
Firmware upgrades via cloud with installer control
Camera viewing via RTSP and ONVIF
Connection between boards and monitors via cloud in different networks
Installation of third-party applications with integrated Google Services
Remote configuration access for installation

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 10" touch screen for easy user operation, with IPS technology that offers higher image quality. In addition, it has an Android operating system, allowing the installation of third-party applications with Google Services to control the intrusion system, SmartHome or CCTV of the facility, among others.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
By having 1 relay output, it is possible to act on different elements, such as doors or bells to be activated during calls.
Advanced configurable functions: ONVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs), standard SIP protocol 2.0 (allows integrating the equipment with third-party PBX telephone exchanges), Bluetooth connection (allows pairing headphones or speakers for use during calls) and doorbell input (allows directly connecting the doorbell push button to the monitor to act as one).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox
IPS Android 12.0 display for 10" video door phone
Easy UI user interface and status LEDs
Dual microphone and four built-in speakers
Two-way audio with Crystal Clear technology with automatic gain control
Automatic voice detection
1 buzzer input and 8 alarm input
1 relay output
Image capture and recording
Multiple screen extensions
TCP/IP, WiFi and Bluetooth
1 PoE port IEEE802.3af
Surface mounting with additional accessory
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per house
Call and user directory
Firmware upgrades via cloud with installer control
Camera viewing via RTSP and ONVIF
Connection between boards and monitors via cloud in different networks
Installation of third-party applications with installable Google Services
Remote configuration access for installation

Akuvox

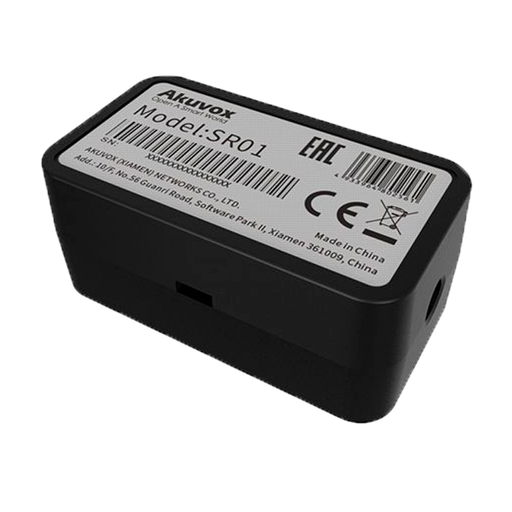

1 door tamper-proof access controller
RS485 Communication
Input for push button
1 relay output
12V/500mA Output
Reduced dimensions for gearboxes
Power supply DC 12V

The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.
This model has a 7" touch screen for easy operation by the user. In addition, it has an Android operating system, allowing the installation of third-party applications with Google Services to control the intrusion system, SmartHome or CCTV of the facility, among others.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Advanced configurable functions: integrated camera (allows video calls), ONVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs), standard SIP protocol 2.0 (allows integration with third-party PBXs) and Bluetooth connection (allows pairing headphones or speakers for use during calls).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox

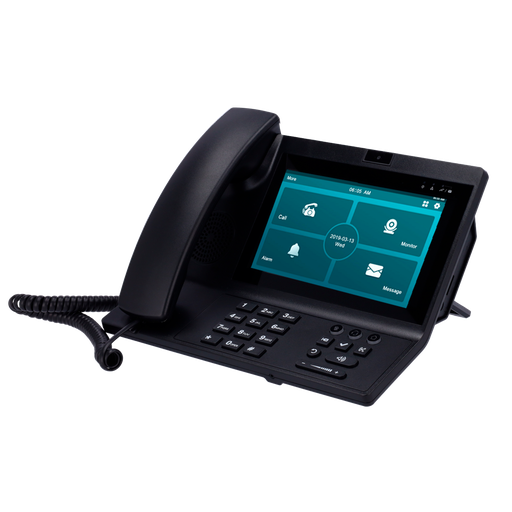

Android TFT master monitor 9.0 for 7" video door entry
Integrated camera of 2Mpx
Built-in microphone and speaker
Two-way audio with Crystal Clear technology with noise reduction and echo cancellation
1 entry RJ9 and 2 entries RJ45
1 HDMI output, 1 jack output 3.5mm and 1 USB-C output
Image capture and recording
Multiple screen extensions
TCP/IP, WiFi and Bluetooth
1 PoE port IEEE802.3af
Surface mounting
Easy-to-integrate SIP standard
Complete configuration via Web browser
Push notifications and calls between devices through SmartPlus APP
4 free users included per house
Call and user directory
Complete call management system
Firmware upgrades via cloud with installer control
Camera viewing via RTSP
Connection between boards and monitors via cloud in different networks
Installation of third-party applications with installable Google Services
Remote configuration access for installation

La placa de videoportero es el elemento que se coloca en el exterior de las instalaciones, por ello también recibe el nombre de unidad exterior, y permite realizar las llamadas de los visitantes al personal del edificio.
Estos equipos también tienen la capacidad de abrir la puerta mediante sus salidas de relé. Este modelo dispone de 2 salidas de relé para poder gestionar hasta 2 puertas de forma simultánea, con salida de 12 VDC (permite alimentar directamente la cerradura electrónica sin necesidad de una fuente de tensión adicional al alimentarse el equipo por PoE estándar). Además, cuenta con control de acceso integrado, permitiendo la identificación a través de tarjetas o llaveros con tecnología RFID EM de 125 kHz y MF de 13.56 MHz, Bluetooth, lectura de códigos QR, así como teclado para códigos numéricos y biometría con reconocimiento facial. También dispone de códigos PIN y QR temporales para dar accesos limitados desde su aplicación móvil SmartPlus.
Los equipos IP se comunican y alimentan mediante cables Ethernet y switches PoE, reduciendo la cantidad necesaria de cables para su funcionamiento.
Su pantalla táctil de 4" permite mostrar el directorio de los usuarios a los que llamar, así como introducir códigos PIN para el acceso.
Su grado exterior IP65 le permite instalarse en la intemperie. Además, su grado antivandálico IK10 le permite resistir en ambientes más conflictivos.
Funciones avanzadas configurables: conexión Wiegand (permite añadir lectores de acceso de terceros para la identificación de los usuarios), protocolo ONVIF (permite integrar la cámara en videograbadores de CCTV) y protocolo SIP estándar 2.0 (permite integrar el equipo en centralitas telefónicas PBX de terceros).
Desde el Cloud de Instalador de Akuvox se crea la estructura de la instalación y se añaden los equipos mediante su dirección MAC. En esta plataforma basada en nube se puede actualizar el firmware de los dispositivos, modificar sus ajustes locales (como los parámetros de red, los ajustes de volumen o los parámetros de los relés, entre otros) o monitorizar su estado de conexión, todo ello de forma remota. Además, este sistema permite a los equipos comunicarse entre sí desde cualquier lugar, sin necesidad de abrir puertos o utilizar una VPN, gracias a la tecnología llamada Multisite.
El Cloud del Administrador de la Propiedad permite gestionar los proyectos de comunidades y oficinas creados por los instaladores para dar de alta credenciales a los usuarios (llaveros o códigos PIN), visualizar los registros de acceso o mandar mensajes a los usuarios.
Con la aplicación móvil SmartPlus, para el usuario final, se reciben las llamadas, se abre la puerta o se visualiza en directo la cámara de la placa, todo ello desde cualquier lugar. Los usuarios pueden revisar un completo registro de llamadas y de accesos, con capturas, o establecer diferentes métodos de acceso (códigos PIN, acceso por NFC y/o Bluetooth o reconocimiento facial). Además, también pueden crear códigos temporales para el acceso, llamados llaves temporales, con los que generar un acceso limitado en el tiempo para compartirlo con quienes necesiten.
Akuvox
Videoportero IP con cámara 2 Mpx para apartamentos
Cámara principal con starlight y HDR
Cámara secundaria de 2 Mpx para tecnología anti-spoofing
Altavoz y doble micrófono integrados
Audio bidireccional con tecnología Crystal Clear
Visión nocturna con iluminación IR
Conexión TCP/IP
PoE+ IEEE802.3at
Lector de tarjetas EM/MF integrado
Apertura mediante reconocimiento facial, BLE y llaves temporales de PIN o QR
Desbloqueo de puerta remota
2 salidas de relé para puerta
Salida de 12 V/700 mA (cuando se alimenta por PoE+)
Puertos Wiegand, RS485 y lazo magnético
Pantalla táctil TFT de 4" a todo color configurable
Fondo de pantalla y salvapantallas personalizable
Iluminación LED en botonera táctil configurable
Apto para exterior IP65
Superficie de acero anticorrosivo SUS316 antivandálico IK10
Montaje en superficie con soporte incluido
SIP estándar de fácil integración
Completa configuración a través de navegador web
Notificaciones push y llamadas entre dispositivos a través de APP SmartPlus (incluido con monitor o con suscripción con AK-COUPON-FOREVER)
4 usuarios gratuitos incluidos por cada vivienda (Comunidad con monitores o con suscripción con AK-COUPON-FOREVER)
Directorio de llamadas y usuarios visualizado en pantalla
Actualizaciones de firmware a través de nube con control del instalador
Conexión entre placas y monitores a través de nube en diferentes redes
Acceso remoto de configuración para instalación

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.
These devices also have the ability to open the door through their relay outputs. This model has 3 relay outputs to manage up to 3 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through cards or key fobs with RFID EM 125 kHz and MF 13.56 MHz technology, Bluetooth, QR code reading, as well as keypad for numeric codes and biometrics with facial recognition. Temporary PIN and QR codes are also available to provide limited access from your SmartPlus mobile application.
IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its 8" touch screen allows you to display the directory of users to call, as well as to enter PIN codes for access.
Its exterior grade IP65 allows it to be installed outdoors. In addition, its IK10 anti-vandalism rating allows it to withstand the most challenging environments.
Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification), ONVIF protocol (allows the camera to be integrated into CCTV video recorders) and standard SIP protocol 2.0 (allows the equipment to be integrated into third-party PBX telephone exchanges).
From the Akuvox Installer Cloud the installation structure is created and the devices are added by their MAC addresses. In this cloud-based platform, you can update the firmware of the devices, modify their local settings (such as network parameters, volume settings, relay parameters, etc.) or monitor their connection status, all remotely. In addition, this system allows computers to communicate with each other from anywhere, without the need to open ports or use a VPN, thanks to the Multisite technology.
The Property Manager Cloud allows you to manage community and office projects created by installers to give credentials to users (key fobs or PIN codes), view access logs or send messages to users.
With the SmartPlus mobile application, the end user can receive calls, open the door or view the live camera of the panel, all from any location. Users can review a complete call and access log, with screenshots, or set up different access methods (PIN codes, NFC and/or Bluetooth access or facial recognition). In addition, they can also create temporary access codes, called temporary keys, with which to generate time-limited access to share with those who need to access the system.
Akuvox

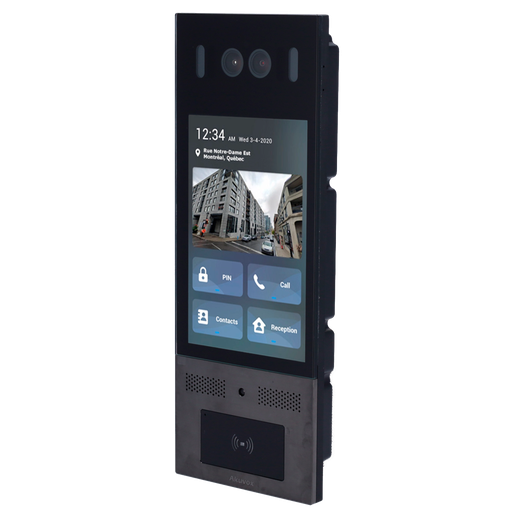

IP video door phone with 2 Mpx camera for apartments with Luxury German design
Main camera with starlight and HDR
Secondary camera of 2 Mpx for anti-spoofing technology
Integrated dual speaker and dual microphone
Two-way audio with Crystal Clear technology
Night vision with IR illumination
TCP/IP Connection
PoE+ IEEE802.3at
Integrated EM/MF card reader
Opening by facial recognition, BLE and temporary PIN or QR keys
Remote door opening
3 door relay outputs
Advanced access functions: anti-passback (through Cloud)
Output of 12 V/1 A (when powered by PoE+)
Wiegand, RS485 and magnetic loop ports
8" configurable full color Android IPS touch screen
Customizable wallpaper and screensaver
Configurable LED illumination on card reader
Suitable for exterior IP65
Anticorrosive steel surface SUS316 vandal resistant IK10
Surface mounting or flush mounting with additional bracket
Easy-to-integrate SIP standard
Complete configuration via web browser
Push notifications and calls between devices via SmartPlus APP (included with monitor or with AK-COUPON-FOREVER subscription)
4 free users included for each dwelling (Community with monitors or with subscription with AK-COUPON-FOREVER)
Call and user directory displayed on screen
Firmware upgrades via cloud with installer control
Connection between boards and monitors via cloud in different networks
Remote configuration access for installation

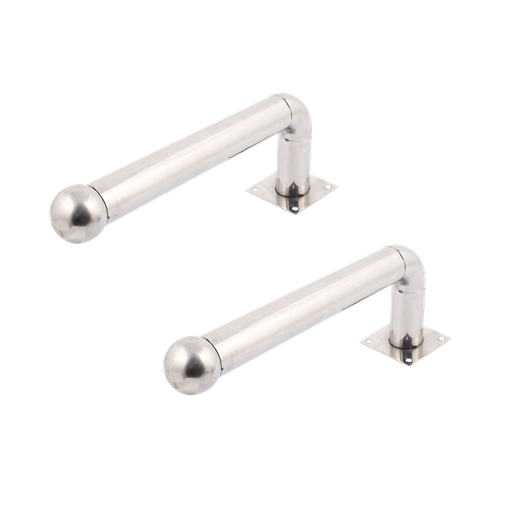

Bracket for infrared barrier
Model L
Stainless steel
Compatible with ABE and ABH infrared barriers
2 units

ALN-EN es un sensor de humo fotoeléctrico, totalmente compatible con el protocolo analógico direccionable ESP de Hochiki.
Incorpora la tecnología de cámara de alto rendimiento más reciente de Hochiki, lo que elimina la necesidad de utilizar sensores de humo de ionización en la mayoría de las aplicaciones.
Esto también permite aumentar el nivel de umbral del sensor, lo que mejora la relación señal/ruido que reduce la susceptibilidad a falsas alarmas.
La cámara de humo se quita o reemplaza fácilmente para su limpieza, y utiliza un diseño de deflector mejorado y exclusivo que permite que el humo ingrese a la cámara mientras bloquea la luz ambiental.
HOCHIKI
Sensor fotoeléctrico de humo analógico
Cámara extraíble de alto rendimiento
Sensibilidad variable

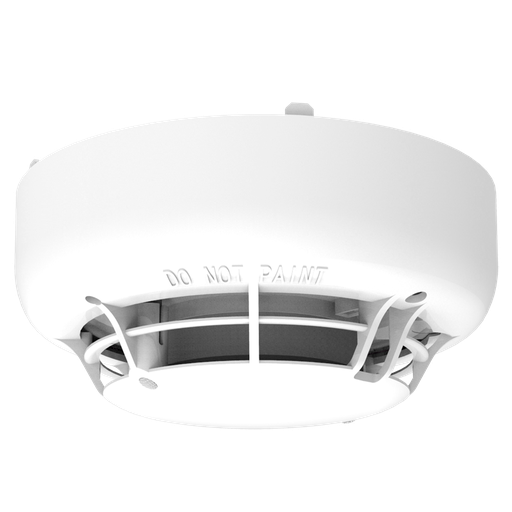

ALN-EN(SCI) es un sensor de humo fotoeléctrico con aislador, totalmente compatible con el protocolo analógico direccionable ESP de Hochiki.
Incorpora la tecnología de cámara de alto rendimiento más reciente de Hochiki, lo que elimina la necesidad de utilizar sensores de humo de ionización en la mayoría de las aplicaciones.
Esto también permite aumentar el nivel de umbral del sensor, lo que mejora la relación señal/ruido que reduce la susceptibilidad a falsas alarmas.
La cámara de humo se quita o reemplaza fácilmente para su limpieza, y utiliza un diseño de deflector mejorado y exclusivo que permite que el humo ingrese a la cámara mientras bloquea la luz ambiental.
HOCHIKI
Sensor fotoeléctrico de humo analógico con aislador
Cámara extraíble de alto rendimiento
Sensibilidad variable
